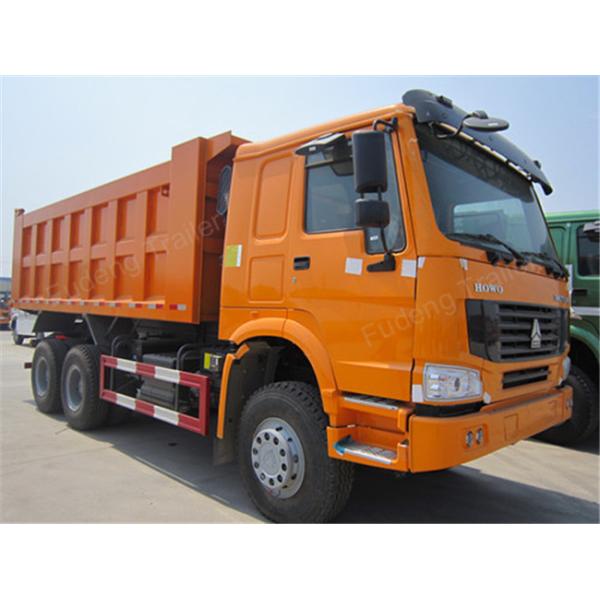

SINOTRUK HOWO tractor head trucks 6x4 40 tons Sand and stone rear Tipper Dump
FEATURES Tractor trailer trucks.
Luxurious, majestic and dynamic appearance.
--Latest international style cabin: Euro type cabin.
--Crystal and upright mounted headlamp
Reliable and high-security Design
--Lateral stability: Patent and tailored frame design
--Safety and reliability: New type break drum.
Low fuel consumption and high efficiency
--High efficiency Power-train: Optimized power transmission design
--Low wind resistance: Streamlined cabin design
Confortable
--Flat floor cabin, enlarge the driver’s space.
--Noise isolation technology
--Ergonomic trim and adjustable seats
--Tilted footstep on front bumper.
--Streamlined cabin design
--Ergonomic dashboard
Specification:
| Cabin | HOWO plat Cabin,one sleeper,Air suspension shock absorb seat , |
| | ,Adjustable steering,air condition,bumper.windy deflector |
| Engine | Diesel, 4-stoke direct injection,6-cylinder in line, Inner cooling,radiator, Turbo-charging |
| | WABCO air compressor,two inlets cyclone air filter. |
| Model: | Euro 2 | STEYR technology CNHTC engine |
| | MAX Horse power: | 336hp |
| | Displacement(L): | 9.726liter |
| | Max torque: | 1360NM@1400-1600rpm |
| | Bore/stoke: | 126mm/130mm |
| | Fuel consumption: | 195g /kwh |
| Gear box | Model: | HW15710 manual |
| | Speed: | 10speed,2 reverse |
| | Max torque:1800NM | Max Ratio:14.28 |
| Axle(front/rear): |
| Front axle | HF 7 ton Steyr technology non-driving steering axle. Drum brake |
| Rear and middle axle | 13ton Steyr technology driving axle, hub redactor, double reduction |
| | |
| Clutch | D430 diaphragm type,single dry frictional disc.hydraulic boosting. |
| Brake | Service brake: Double circuit penumatic(air) brake |
| | Parking brake: Spring-Power drum brake |
| | Engine brake: Engine exhaust brake(EVB) |
| Steering | ZF 8098, driver sit at the left hand side |
| Electric Equipment |
| | Operating voltage: | 24V negative grounded |
| | Starter | 24V,5.4KW |
| | Alternator | 28V,1.5KW |
| | Battery voltage | 2X12V/135Ah |
| Frame | Made of strengthened high intensity steel,parallel ladder with U-profiles, |
| | Riveted cross members. |
| Tyre | 295/80R22.5/6+1 spare tyre with rim |
| | |
| Suspension system: heavy duty leaf spring type |
| | Front/Rear | 10/12 |
| Overall dimension(mm): 6110x2496x3668(Length x width x height) |
| Wheelbase | 3500mm |
| Track: | Front/Rear | 2022/1830 |
| | Approach/Departure angle | 16/42 |
| | Front /Rear overhang | 1500/1110 |
| | Max speed | 102km/h |
| Tare weight | 7210kg | Diesel tank: | 400L |
Tractor Head Trucks Models.
6x4 Stype Dump Trucks.
Welcome to China and visit our factory. We believe your smart choice will be rewarded with good quality and competitive price.
