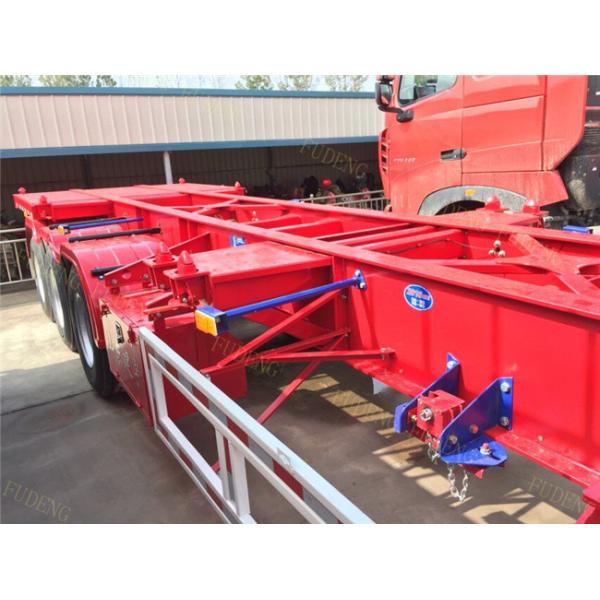

New 40ft container transportation skeleton semi trailer 45Tons flatbed container chassis
Chassis container trailers servies:
1). Traning of trailer operating and normal maintenance .
2). Regularly callback to know the vehicle's working status.
3). Supply the service of regular repair.
4). Solve the customer’s advisory.
5). The overseas engineers are always ready to deal with unexpected needs.
6). 24 hours hotline.
7). CKD and SKD are available.
8). Faster, better and more professional
FUDENG optional: 40ft skeleton container trailer, 20ft skeleton container semi trailer, 40ft Extendable skeleton chassis trailer, 4 axle chassis container trailer, , skeletal container trailer,12.5m container truck trailer, Skeletal cng tube tank trailer, Chemical tank skeletal container truck and trailer,etc.
Specification:
| Main beam | Beam height: 500mm Upper plate : 16mm Double Middle plate : 8+8mm Down plate : 18mm |
| Side beam | 18# U-shape steel 18# |
| Platform thickness | 6mm |
| Side wall thickness | 4mm |
| Material | Q345B |
| Gross vehicle weight | Approx. 11ton |
| King pin | 90# |
| Cylinder | China Brand or Netherlands HYVA Cylinder |
| Land gear | JOST brand two-speed, Manual operating Heavy duty 28ton, |
| Axle | FUWA or BPW brand, 3*13T |
| Suspension | Leaf Spring Suspension |
| Thicken leaf spring | 10/10/10 |
| Tire | Triangle Brand, 12R22.5, 12 sets |
| Brake Valve | WABCO |
| Brake Chamber | 6 ,double air chambers |
| Spare wheel carrier | 2 pcs |
| Tool box | 1 pcs |
| Electrical System | Chinese standard 24V lighting system |
| Side Marker Lamp | LED Lamp LED |
| Marking and Color | By customer’s requirement |
Container chassis trailers models.
40Tons Chassis container trailers.
Package&Shipping:
Welcome you to visit our factory !
1.We can pick up you in the airport port ‑,
2 book the hotel for you,
3. show around the workshop and production line.
4. We can supply the truck parts.
5. We can supply the stock trucks if you need the trucks urgently.
Product Tags:
|
|
40 Feet Steel Chassis Container Trailer For Container Transportation Images
|
